BAPV Decoded: The Smart Solution for Retrofitting Solar on Existing Buildings
Core Definition: Building Attached Photovoltaics (BAPV) is a retrofit solar solution where photovoltaic panels are mounted onto existing building structures without replacing core building materials. Unlike integrated systems (BIPV), BAPV leverages existing roofs or facades to generate power.
Key Distinction: BAPV systems don't function as structural elements - they're power generators attached to buildings. Remove the panels, and the building remains fully functional.
The BAPV Advantage for Commercial & Industrial Properties
BAPV dominates commercial retrofits globally, offering:
- Cost Efficiency: 40-60% lower installation costs than structural alternatives
- Minimal Disruption: Installation without building alterations or downtime
- Structural Integrity: Non-penetrating ballasted mounting systems preserve roof warranties
- Scalability: Easily expand capacity as energy needs grow
Major warehouse operators report 12-25% energy cost reductions with industrial-scale BAPV deployments.
BAPV vs BIPV: Choosing the Right Solution
Understanding these differences ensures optimal project outcomes:
| Factor | BAPV | BIPV |
|---|---|---|
| Installation Timing | Post-construction retrofit | Integrated during construction |
| Structural Function | Power generation only | Serves as weatherproof layer |
| ROI Period | 3-5 years | 7+ years |
When to choose BAPV: Retrofits, budget projects, warehouses with solid existing roofs
Engineering Excellence: Grace Solar's GS-Energy BAPV Solutions
Our GS-Energy systems feature patented mounting solutions designed for every commercial roof type:

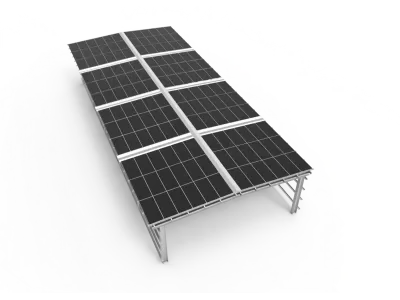

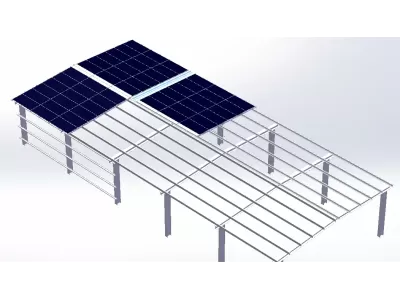

Flat Roof Systems
Engineered ballasted racks optimize tilt angles (10°-30°) without roof penetration. Our aerodynamic designs reduce wind uplift forces by up to 40%.
Key Feature: Self-adjusting weight distribution prevents ponding water issues on membrane roofs.
Metal Roof Solutions
Seam-clamping technology for standing seam roofs protects waterproof integrity. Corrugated roof brackets feature triple-seal gasket systems.
Key Feature: Vibration-damping connectors prevent metal fatigue in high-wind regions.
High-Slope & Tile Roofs
Low-profile rail systems maintain roof aesthetics. Weight-distributing tiles mounts prevent cracking.
Key Feature: Non-corrosive aluminum alloy components extend system life beyond 30 years.
48GW of Trusted Performance
Grace Solar systems are engineered for reliability across global environments:
Certifications
- UL 2703 & UL 3703
- TÜV Rheinland Class II
- AS/NZS 1170 Wind Compliance
- ISO 9001 Manufacturing
Performance Validation
- Wind tunnel testing >150km/h
- Snow load certification >5400Pa
- Corrosion resistance: Salt Spray 3000hr
Global Track Record
- 48GW+ deployed worldwide
- 100+ countries operation
- 15GW annual capacity
Explore our certified BAPV mounting systems trusted by Fortune 500 companies.
Maximize Your Roof's Energy Potential
Grace Solar delivers end-to-end solar solutions with rapid ROI:
AI-Optimized Designs
Maximize energy yield per sqm
EPC Project Excellence
Turnkey solutions from design to operation
The Future of Building-Attached Solar
The global BAPV market is projected to grow at 12.8% CAGR through 2030, driven by warehouse solarization and corporate sustainability mandates.
Grace Solar is pioneering next-generation features:
- Smart Monitoring: IoT-enabled performance tracking
- Hybrid Integration with energy storage systems
- Modular Systems for phased implementations
- Low-Light Enhancements for northern climates
Our innovation lab continuously improves the economics of retrofit solar solutions for commercial applications worldwide.
