Solar Ground Mount Systems 2026: Trends & Innovations

1. Strategic Importance of Solar Ground Mounting Systems

In the global shift toward low‑carbon energy, photovoltaic mounting systems have evolved from simple steel structures to intelligent, load‑bearing assets that directly influence LCOE and project IRR. Although they account for only 10‑15% of initial CAPEX, their impact on long‑term energy yield and O&M costs is decisive.

Leading manufacturers like Grace Solar (a BYMEA Group company with $500M registered capital) are redefining this domain. With 48GW cumulative global installations and the #1 market share in Japan, Grace Solar integrates AI, IoT, and advanced materials to deliver systems that maximize ROI across 100+ countries. Its products meet UL, TUV, CE, JIS, and AS/NZS1170 standards, ensuring bankability and resilience under extreme climates.

2. Fixed & Manual Adjustable Systems: Stability & Cost‑Effectiveness

Fixed‑tilt systems remain the most widely used due to their simplicity and zero parasitic consumption. Optimal tilt angles are calculated from historical meteorological data to maximize annual irradiance capture. For harsh environments (deserts, high latitudes), fixed structures are unbeatable.

Manual adjustable systems add seasonal flexibility: by altering the tilt 2‑4 times a year, they boost energy yield by 3‑8% with minimal added cost. Grace Solar’s GS‑Smart ground mounting series covers both categories, supporting 0‑60° tilt adjustments and adaptable to 60m/s wind loads. Fabricated from high‑strength aluminum alloy or zinc‑aluminum‑magnesium (ZAM) steel, they carry a 10‑year warranty and are certified for residential to utility‑scale projects. Whether for flat terrains or 30° slopes, these systems simplify logistics with fast‑assembly designs.

3. Tracker Systems: Digital Leap in Energy Yield

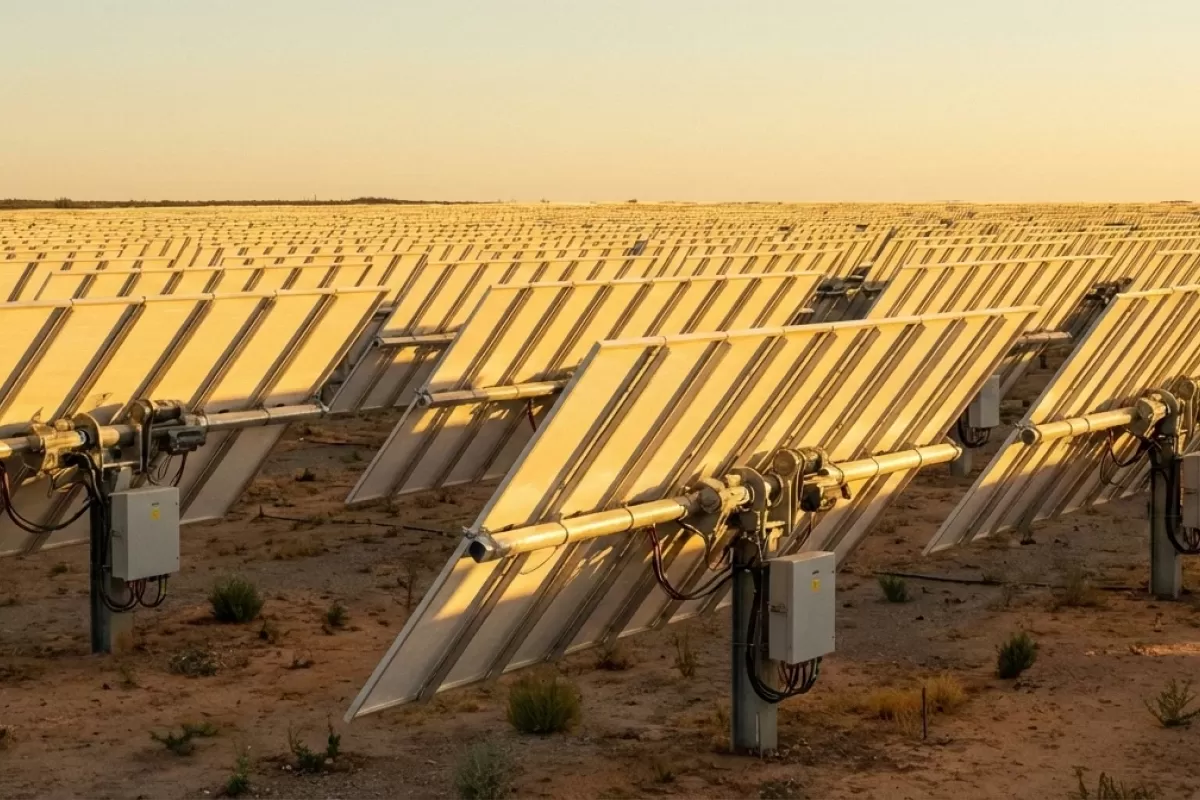

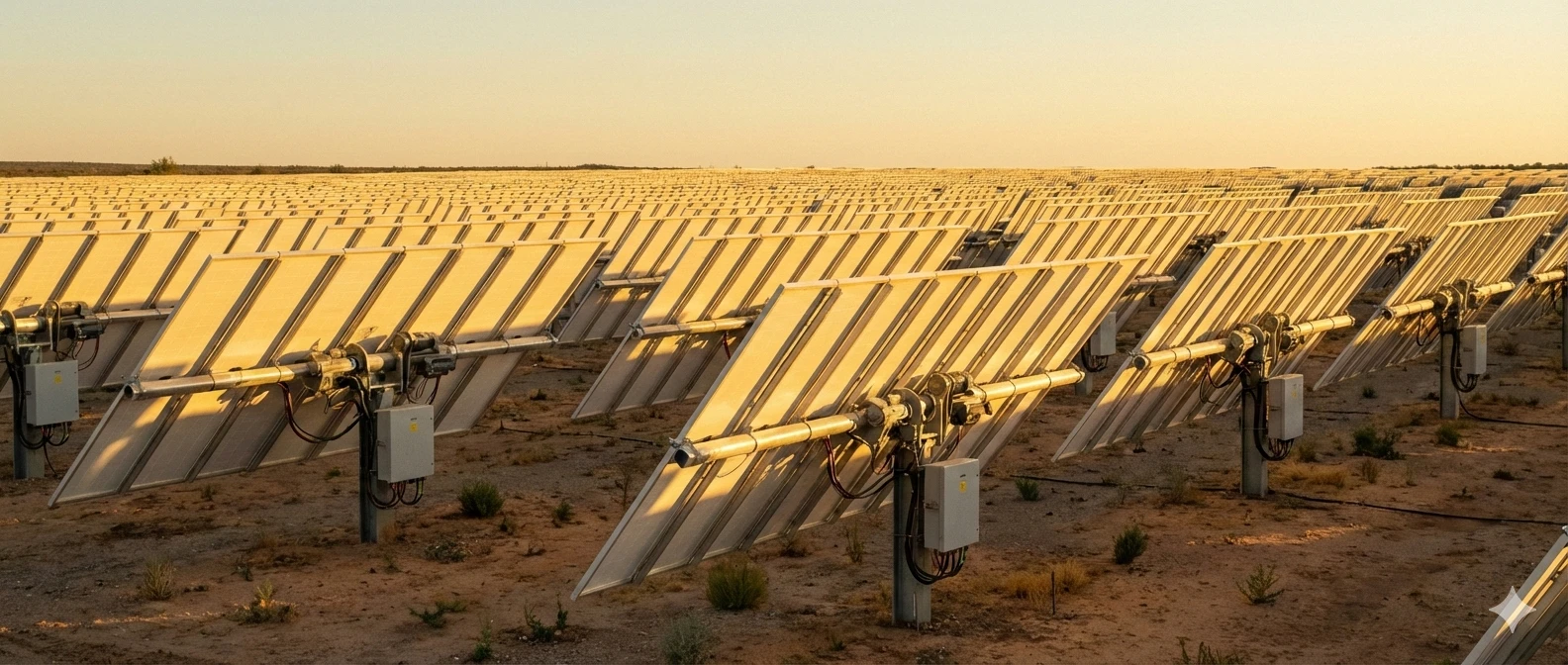

Tracking systems (single‑axis or dual‑axis) dynamically follow the sun, boosting generation by 15‑25% compared to fixed mounts. Modern trackers employ multipoint drive technology to mitigate torsional vibration and resonance under high wind. Grace Solar’s GS‑Light Intelligent Tracking System exemplifies this evolution: it integrates AI, IoT, and self‑developed core algorithms. Designed for 210mm/600W+ bifacial modules, it adapts to 20% slopes and irregular terrains, increasing power yield by 8% and wind resistance by 20% (validated by RWDI wind tunnel tests). With over 100 patents, GS‑Light reduces LCOE through efficient O&M and extreme‑weather protection strategies—trusted by Fortune 500 partners worldwide.

4. Material Science: Zinc‑Aluminum‑Magnesium & Aluminum Alloys

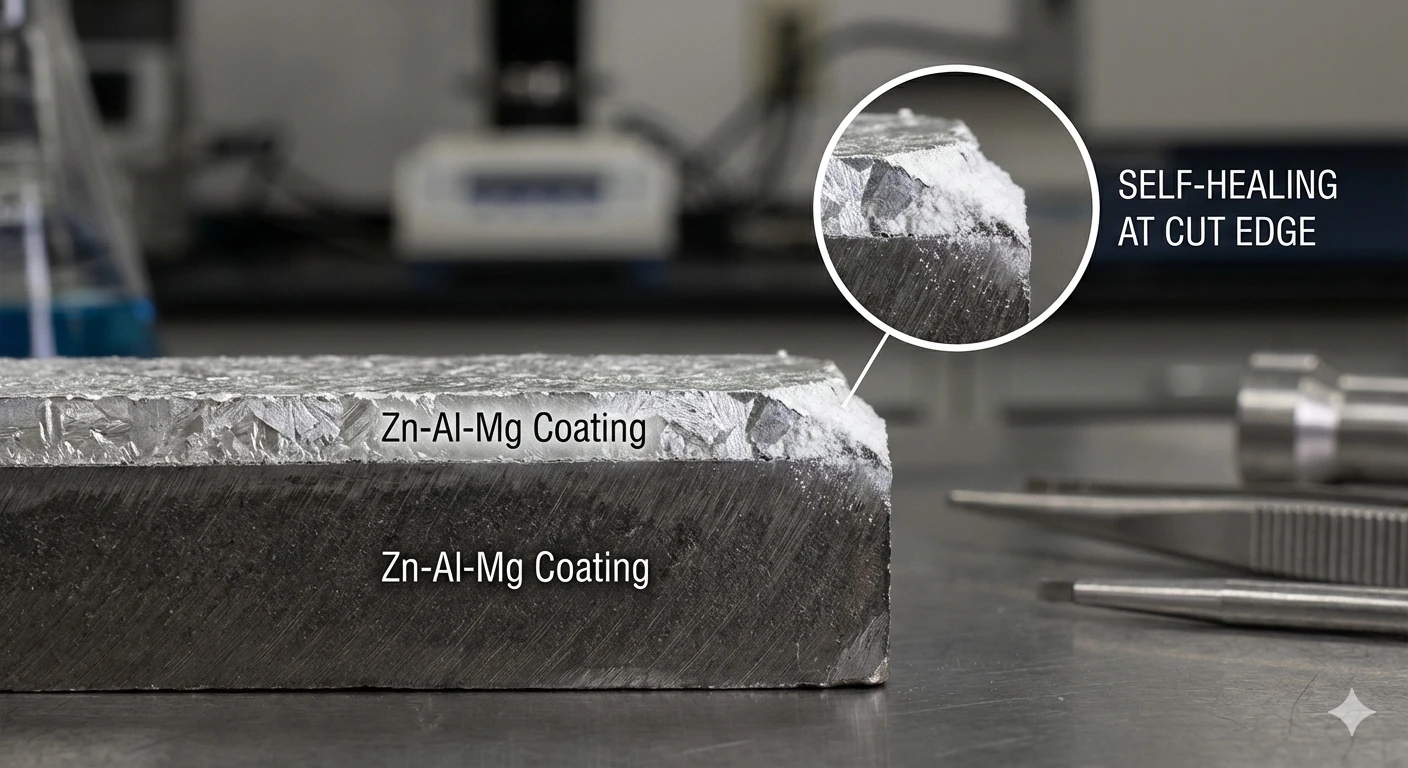

The 25‑year service life demands exceptional corrosion resistance. Traditional hot‑dip galvanizing is now complemented by ZAM (zinc‑aluminum‑magnesium) coated steel, which offers self‑healing properties at cut edges and superior performance in coastal/industrial environments. Grace Solar adopts ZAM II (mid‑magnesium type) for its ground and farm mounting systems, ensuring compliance with YB/T4457‑2022 standards. Alternatively, high‑strength aluminum alloy (Al6005‑T5) is used for rooftop and carport solutions, leveraging its natural oxide layer for maintenance‑free durability. All materials are UL/TUV/CE certified and support 1.4kN/m² snow loads, 60m/s wind resistance, and up to 55‑year lifespans under normal conditions.

5. AI & Smart Algorithms for Bifacial Optimization

In 2026, trackers are driven not only by astronomical formulas but by AI power‑closed‑loop control. Grace Solar’s AI‑enhanced system leverages real‑time irradiance sensing: under cloudy conditions, it flattens the angle to capture diffuse light, avoiding the losses of pure direct‑radiation tracking. For bifacial modules, the algorithm dynamically balances front‑side direct light and rear‑side albedo (from sand, snow, or water), boosting total output by an additional 2‑5%. The patented Smart Backtracking (SBA) uses 3D terrain modeling to eliminate inter‑row shading on slopes, delivering 0.5‑4% more energy even on complex topography. This level of digital integration is a hallmark of Grace Solar’s GS‑Light and GS‑Smart platforms.

6. Large‑Span Flexible Supports: Engineering Breakthrough

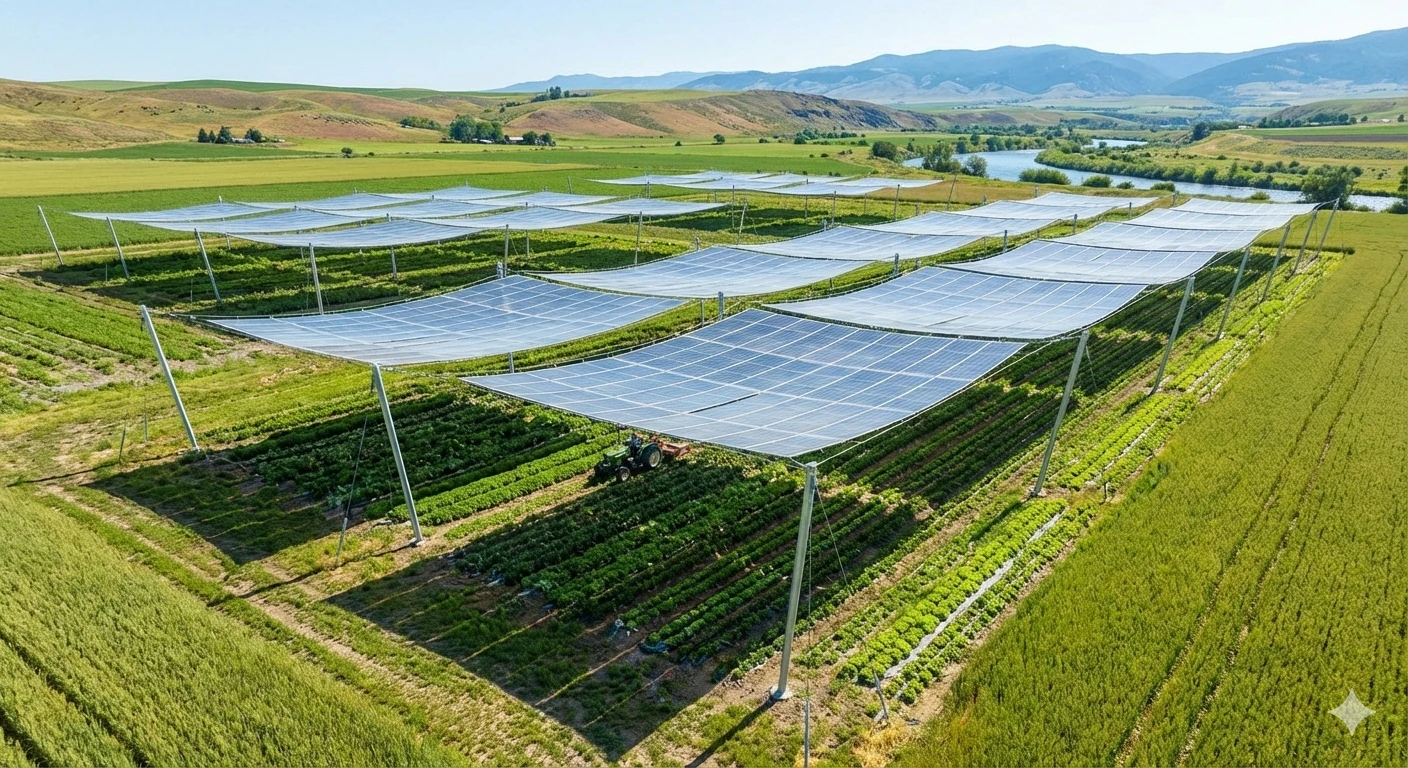

As PV expands to ravines, fishponds, and steep hills, flexible mounting systems using prestressed steel cables offer 20‑40m spans with minimal foundations. They provide 5.5‑10m clearance underneath for agriculture or machinery. Grace Solar’s flexible solutions (part of its Farm Mounting System range) incorporate spatial cable‑net structures and damping components to suppress wind‑induced vibration. Tested against Typhoon Maria (equivalent to Category 17), these systems maintained structural integrity and module safety. By reducing the number of piles by over 50%, they also lower ecological disturbance—ideal for environmentally sensitive projects.

7. PV+ Applications: Agrivoltaics & Fishery Integration

Agrivoltaics: Grace Solar’s Farm Mounting System optimizes spacing and tilt to maintain >70% sunlight for crops, while integrated AI monitors microclimates. Projects like the 33‑span flexible installation in Shaanxi, China, demonstrate simultaneous power generation and fruit harvesting. Fishery PV: For water surfaces, the carport and ground systems adapt to high‑humidity, salt‑mist conditions. By shading water, they reduce evaporation and stabilize aquatic life—proven in Japanese and Southeast Asian floating‑ready designs. All systems come with waterproof options and are compatible with NEC 2023 grounding standards.

8. Grace Solar: Global Market Leadership & R&D Excellence

With 650+ employees, a 110,000㎡ factory, and a 2000㎡ key laboratory, Grace Solar ranks among the global top 5 mounting suppliers. Its 15GW annual capacity and 48GW cumulative installations span Japan (#1 share), the US, Australia, Europe, Middle East, Africa, and Southeast Asia. Key differentiators include:

• Certifications: UL, TUV, CE, JIS, MCS, AS/NZS1170, and wind tunnel test reports from RWDI.
• Bankability: Independent financial reports validate GS‑Light tracker’s ROI, supported by partnerships with Fortune 500 firms.
• Complete solutions: From GS‑Light (tracker), GS‑Smart (fixed), GS‑Energy (roof), to carport and components—covering both DSP and CSP markets.
• Global engineering: Native‑language engineers (EN, 中文, 日本語, ES, PT) deliver terrain analysis and cost optimization within 30 minutes.

9. Future Trends 2026‑2030: Autonomous & Integrated Systems

AI‑driven “autopilot” power plants: Mounting systems will act as sensory nodes, adjusting angles in real time to wind gusts, snow loads, or grid requests. Grace Solar is already embedding vibration sensors for structural health monitoring. PV‑storage integration: Future trackers may modulate angles to match storage charging/discharging, providing grid ancillary services. Circular economy: ZAM steel and aluminum from decommissioned plants will be recycled, cutting carbon footprint. Grace Solar’s “Born from renewable energy, drives solar forward” ethos aligns with these green manufacturing principles, aiming for carbon‑traceable supply chains by 2027.

10. Conclusion: Choose a Future‑Proof Mounting Partner

As the solar industry moves toward terawatt scales, mounting systems are no longer just hardware—they are intelligent, material‑science‑driven assets that determine project bankability. Whether you need fixed, tracking, flexible, or agri‑PV solutions, selecting a partner with proven global experience and innovation is critical.

Grace Solar combines 17+ years of expertise, top‑tier certifications, and AI‑ready platforms to deliver “rock‑firm” installations that maximize sun‑profit. Contact our native engineers for a customized proposal tailored to your terrain, climate, and financial goals.
