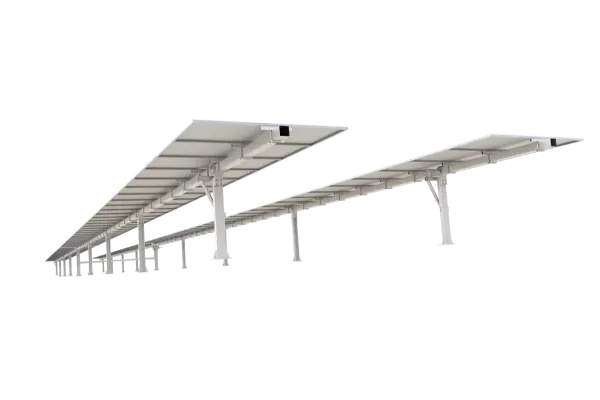

2 Axis Tracker Solar Tracking System

Our 2-axis solar tracker automatically aligns panels with the sun’s path, maximizing energy harvest. Using advanced algorithms, it increases energy output up to 40% over fixed mounts. Its robust frame and weatherproof design ensure reliable operation in all conditions.

$671.53

Ex Tax: $671.53

Tags: 2-axis solar tracker , dual-axis solar tracker , solar panel tracking system , intelligent solar tracking , solar tracker controller , bifacial solar tracker , agrivoltaic solar tracker , high-efficiency solar tracker , renewable energy tracker , photovoltaic tracking system

Features

High-precision dual-axis solar tracker maximizes energy yield with intelligent sun-tracking. Rugged, weatherproof construction ensures reliability.

Maximize Energy Output:

The tracker follows both the sun’s azimuth and elevation, delivering up to 40% more energy than stationary arrays

Precise Sun Tracking

Advanced astronomical algorithms angle the panels for optimal sun exposure throughout the day

Bifacial-Ready Design

Elevated height harnesses ground-reflected light (albedo). Dual-sided (bifacial) panels capture 360° sunlight, boosting output ~20%

Robust Structural Design

Nature-inspired exoskeleton frame and lattice design provide superior rigidity and strength, ensuring long-term durability

Storm-Resistant Engineering

Gearless drive with continuous-slip wind stow protects the tracker in high winds and storms, ensuring safe, reliable operation

Quick, Tool-Free Installation

Pre-assembled modules and patented MechGrip clamps enable fast, plug-and-play setup. No heavy machinery or specialists needed

Smart Remote Monitoring

Built-in controller and wind sensors allow remote monitoring. The intelligent tracking system automatically adjusts angles and reports performance

Dual-Use Land Savings

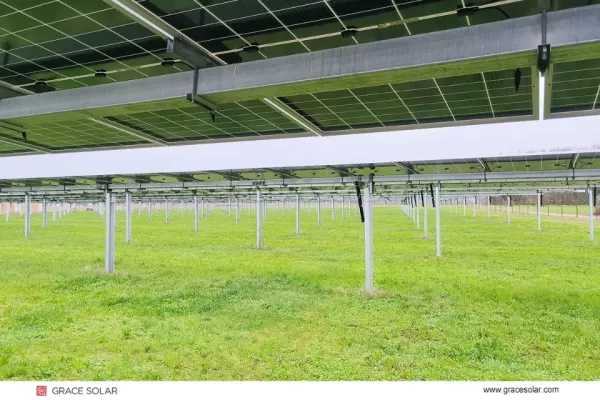

Raised panels allow crops or parking underneath. Ideal for agrivoltaic and commercial sites, it maximizes land use without sacrificing sunlight

High Capacity & Versatility

Supports up to 40 kW of PV modules per unit. 360° azimuth and 0–60° tilt range cover any orientation, making it versatile for large installations

Application

It Is Suitable For Various Power Plant Projects, Especially In Power Plant Projects With Irregular Land.

Smart solar tracker for mountainous terrain: Adapts to 20% slopes with AI control boosting 6% energy output

Adapts to 20% slopes, AI control boosts 6% output

Sandstorm-proof solar tracking system: Wireless communication optimizes desert energy efficiency

Wind/sand resistance + wireless comms for desert efficiency

IP65-rated coastal solar system: Salt corrosion resistance + tidal adaptability

IP65-rated protection + tidal adaptability for coastal zones

Modular solar solution for irregular industrial sites: AI control + flexible configurations

Modular flexibility + AI control for complex industrial sites

Agri-PV vertical array system: Balances crop growth and solar efficiency

Single-row vertical arrays for crop-light balance

Technical Specs

Features

● Specially designed for double-sided modules and compatible with single-sided modules

● Optimal cost budget

● AI intelligent control system can increase production capacity output by 6%

● The north-south slope can be adapted to 20%

● Higher utilization rate of irregular land

● DC string and lithium battery backup power supply, reducing LCOE cost

Mechanical Aspect

Number of Tracker Drive Modules	2X45	Material	Hot-dip Galvanized Steel + Aluminum-Magnesium-Zinc Plate + Pre-Galvanized
Number of Motors Per Tracker	1	East-west Land Slope	Unlimited
Tracking Range	±60°	Module Arrangement	Double Row Vertical
North-south Land Slope	＜20%	Foundation Form	Static Pressure Pile, Cement Precast Pile, Concrete Foundation
Mechanical Tracking Accuracy	±2°	Standard Wind Speed	＜47m/s，3 Seconds Gust (Customizable)
Protection Wind Speed	18m/s	Ground Clearance	＞500mm (Customizable)
Land Occupation Rate	0.3	Grounding Method	Self-Grounding

Electrical Aspect

Drive way	Rotary drive	Motor protection	Overheat protection, overcurrent protection, self-locking protection
Motor Power	150W	Limit protection	Mechanical limit + motor hard limit + soft limit
Flat time	＜8 minutes	Control mode	Independent GPS time control + tilt sensor hybrid control
Controller	MCU	Power consumption	< 0.08kWh/day
Control tracking accuracy	＜2°	Power supply	String power supply/external power supply
Protection level	IP65	Communication method	RS485 Modbus agreement
Operating temperature	-40-+70℃	Signal transmission method	Wired/wireless optional
