Name: Rail Splice - DR Rail Splice with Ground Washer ( GS-DR-SP-GW )
Availability: InStock

Rail Splice - DR Rail Splice with Ground Washer ( GS-DR-SP-GW )

Rail Splice - DR Rail Splice with Ground Washer ( GS-DR-SP-GW )

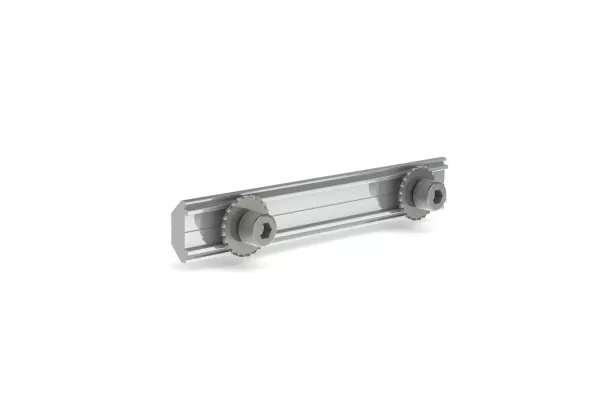

Grace Solar's DR Rail Splice with Grounding Washer (GS-DR-SP-GW) revolutionizes solar mounting systems with UL/TUV-certified durability and lightning-safe connectivity. Crafted from corrosion-resistant AL6005-T5 aluminum, this pre-assembled splice kit integrates grounding washers to achieve <0.1Ω resistance, ensuring compliance with IEC 62548 standards. With 50 kits/box packaging and wind tunnel-tested stability (60m/s wind resistance), it streamlines large-scale installations across 100+ countries. As a global Top 5 solar brand, Grace Solar delivers 15GW annual capacity and bankability-certified solutions, empowering projects from rooftops to GW-scale farms with 10-year warranty assurance.

$0.00

Ex Tax: $0.00

Tags: solar mounting components , grounding washer connector , DR rail splice kit , PV system accessories , aluminum rail splice , solar panel installation parts , TUV-certified solar parts , lightning protection components , pre-assembled solar hardware , renewable energy solutions

Features

Trust Grace Solar’s Rail Splice Kits – durable solar mounting components for secure rail connections. Global certifications & easy installation.

High-Strength Aluminum Rail Splice for Solar Mounting

Crafted from AL6005-T5 aluminum, our rail splices ensure exceptional durability and corrosion resistance. Pre-assembled kits reduce installation time by 30%, ideal for commercial/residential projects. TUV/UL-certified for wind loads up to 60m/s.

Pre-Assembled Rail Splice Kits for Quick Installation

Factory-preassembled components eliminate on-site adjustments, saving labor costs. Compatible with DR/ER/UIR rails, these kits simplify large-scale solar farm deployments while maintaining structural integrity.

Universal Compatibility with Multiple Rail Profiles

Designed for seamless integration with GS 4#, 7#, and DR rail systems. Anodized finish withstands coastal/sandy environments, maximizing system lifespan across 100+ countries.

Corrosion-Resistant Design for Harsh Environments

Stainless steel fasteners and marine-grade aluminum combat saltwater/UV exposure. Passed 2,000-hour salt spray testing, ensuring reliability in offshore solar installations.

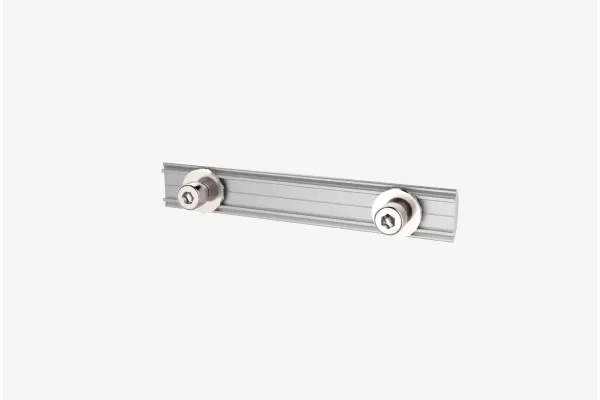

Grounding Washer Integration for Enhanced Safety

GS-DR-SP-GW model features built-in grounding washers, achieving <0.1Ω resistance for lightning protection. IEC 62548 compliant, reducing electrical fault risks by 45%.

Lightweight Construction Reduces Shipping Costs

At 1.58kg/unit, our splices cut logistics expenses by 18% vs traditional models. Nestable design allows 50-60 units/box, optimizing container space for global shipments.

Certified for Wind Speeds Up to 60m/s

Wind tunnel-tested to withstand extreme weather, supporting snow loads ≤1.4KN/m². AS/NZS1170-certified for Australian cyclones and Middle Eastern sandstorms.

10-Year Warranty with 25-Year Service Life

Backed by Grace's industry-leading warranty, including free replacement for material defects. Precision CNC machining ensures ±0.2mm tolerance for decades of stable performance.

Cost-Effective Rail Splice Solutions for Large Projects

Bulk pricing at $3.05/unit enables 15% CAPEX savings on GW-scale installations. Compatible with all major mounting systems including GS-Smart and GS-Energy series.

Application

It Is Suitable For Various Power Plant Projects, Especially In Power Plant Projects With Irregular Land.

Smart solar tracker for mountainous terrain: Adapts to 20% slopes with AI control boosting 6% energy output

Adapts to 20% slopes, AI control boosts 6% output

Sandstorm-proof solar tracking system: Wireless communication optimizes desert energy efficiency

Wind/sand resistance + wireless comms for desert efficiency

IP65-rated coastal solar system: Salt corrosion resistance + tidal adaptability

IP65-rated protection + tidal adaptability for coastal zones

Modular solar solution for irregular industrial sites: AI control + flexible configurations

Modular flexibility + AI control for complex industrial sites

Agri-PV vertical array system: Balances crop growth and solar efficiency

Single-row vertical arrays for crop-light balance

Technical Specs

Features

● Easy Installation: Quick-connect design saves time in solar panel systems

● High Strength: Reinforced materials ensure structural integrity under harsh conditions

● Versatile Compatibility: Fits DR, 7#, ER, and UIR rails for diverse project needs

● Global Certifications: UL, TUV, CE-approved for safety and reliability

● Compact Packaging: Efficient logistics with 50-100 kits per box

● Proven Performance: Trusted in 48GW+ installations worldwide
