Adjustable Solar Panel Roof Mount Solar Roof Brackets

Adjustable Solar Panel Roof Mount Solar Roof Brackets

Engineered for peak solar harvest, our Adjustable Solar Panel Roof Mount offers 10°-60° tilt optimization across tile, metal, and flat roofs. With 60m/s wind resistance and 1.4kN/m² snow load capacity, the anodized Al6005-T5/SUS304 structure ensures 25-year durability. Pre-assembled components cut installation time by 50% and support BIPV integration for seamless architectural synergy. Certified to UL, TUV, and AS/NZS 1170 standards, it’s the global top-5 choice for residential and commercial projects in 100+ countries.

$437.86

Ex Tax: $437.86

Tags: adjustable solar roof mount , bipv mounting , ballasted solar racking , standing seam solar clamps , flat roof tilt mount , solar panel angle bracket , anodized aluminum solar mount , ul certified solar racking , pre-assembled pv brackets , railless mounting

Features

Maximize energy yield with 10°-60° adjustable roof mounts. Weatherproof Al6005-T5 alloy withstands 60m/s winds. Pre-assembled for fast install. UL/TUV-certified. Ideal for BIPV and ballasted systems.

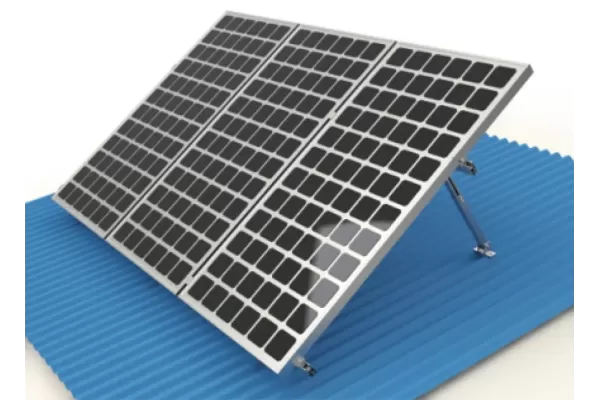

Four-Stage Angle Optimization (10°-60°)

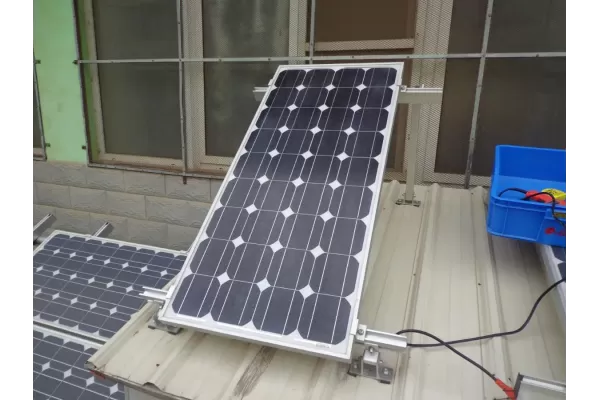

Adjust tilt seasonally to capture 25% more sunlight than fixed mounts. Telescopic legs enable precise angle locking without tools, boosting ROI in low-light winters.

Hurricane-Proof Aluminum-Steel Hybrid

Anodized Al6005-T5 rails + SUS304 bolts endure 216km/h winds and 140kg/m² snow. Corrosion-resistant for coastal/snowy regions, backed by 10-year warranty.

Pre-Assembled Kits Slash Labor by 50%

Modular clamps, rails, and tilt legs arrive 90% assembled. Bolt-on design requires no welding or cutting, saving $1,200+ per project.

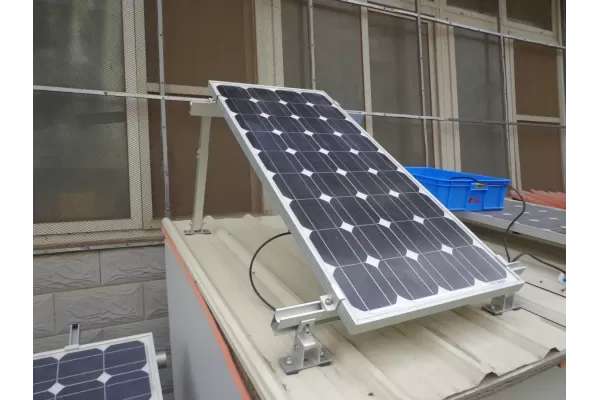

BIPV-Compatible Flush Integration

Low-profile brackets merge with roofing materials (tile, standing seam, TPO). Zero gaps prevent water pooling + maintain rooftop aesthetics for commercial BAPV projects.

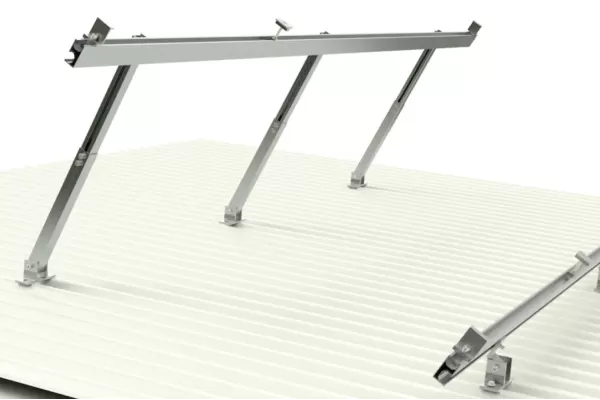

All-Roof Versatility: Tile to Trapezoidal

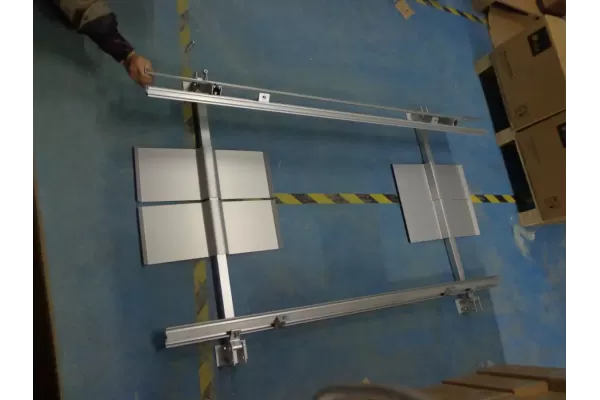

Includes waterproof EPDM pads for shingle roofs, S-5 clamps for metal seams, and ballast trays for flat surfaces. No retrofitting needed.

Eco-Certified Recyclable Aluminum

100% recyclable alloy reduces carbon footprint. ISO 14001 manufacturing and zero-waste packaging align with ESG goals.

Global Compliance: UL, TÜV, JIS Certified

Meets AS/NZS 1170, EN 1991, and MCS standards. Includes bankability reports for financiers in US/EU/Japan markets.

25-Year ROI with Near-Zero Maintenance

Self-cleaning anodized surface resists debris buildup. Lifetime structural warranty lowers LCOE to $0.02/kWh over 25+ years.

48GW Field-Proven Across 100+ Countries

Deployed in Australian desert heat (+50°C), Japanese typhoons, and Scandinavian snow. Customizable for extreme terrains.

Application

It Is Suitable For Various Power Plant Projects, Especially In Power Plant Projects With Irregular Land.

Smart solar tracker for mountainous terrain: Adapts to 20% slopes with AI control boosting 6% energy output

Adapts to 20% slopes, AI control boosts 6% output

Sandstorm-proof solar tracking system: Wireless communication optimizes desert energy efficiency

Wind/sand resistance + wireless comms for desert efficiency

IP65-rated coastal solar system: Salt corrosion resistance + tidal adaptability

IP65-rated protection + tidal adaptability for coastal zones

Modular solar solution for irregular industrial sites: AI control + flexible configurations

Modular flexibility + AI control for complex industrial sites

Agri-PV vertical array system: Balances crop growth and solar efficiency

Single-row vertical arrays for crop-light balance

Technical Specs

Technical Information

Installation Site	Commercial Roof	Angle	Parallel Roof( 10-60deg )
Material	High-strength Aluminum Alloy & Stainless Steel	Color	Silver or Customized
Building Height	Below 20m	Maximum Wind Speed	<60m/s
Maximum Snow Cover	<1.4KN/m²	Reference Standards	AS/NZS 1170 & EN1991 & Other
Usage Time	More Than 20 Years	Quality Assurance	10-year Quality Assurance
Surface Treatment	Anodizing & Stainless Steel
